Set Port Mode

This intent allows you to change the port mode on a specific hub and port. To understand the different port modes and the options available for your particular hub, please consult the hub's individual user manual. This intent provides flexibility in configuring the behaviour of each port, ensuring that your hub operates according to your specific requirements.

Once you have selected the hub you wish to control, and defined the port number there is a drop-down of the available port modes:

Table 3-5

On	Turn specific ports on
Off	Turn specific ports off
Charge	Turn specific ports to charge only mode (no data connection, hub emulates an OEM charger) (Legacy hubs only)
Biased	Detect the presence of a device but it will not sync or charge it (Legacy hubs only)

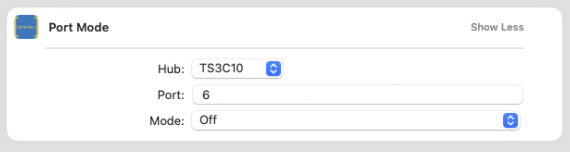

Figure 3.12
