Set LED (Legacy)

This LED control feature allows you to change the LED colours on legacy Cambrionix products. Before using it, you must first activate LED Control Mode by using the Set LED Control Mode intent, which prepares the hub for LED adjustments.

'Legacy products' refer to hubs equipped with individual Green, Yellow, and Red LEDs for each port. The following legacy products are supported:

• ThunderSync3-16

• PDSync-C4

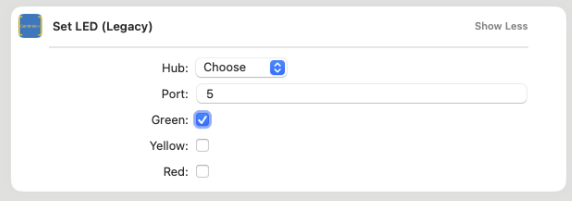

Once the hub is in Control Mode, you can select the specific hub and port you wish to update. For each port, there are three checkboxes for the available LED colours—Green, Yellow, and Red. You can select one or more colours to light up the LED on the chosen port. This gives you a flexible way to visually monitor and manage the status of each port on your legacy hubs.

Figure 3.9
