Set LED

This LED control feature allows you to change the LED colour on Cambrionix products equipped with RGB LEDs. Before using this control, you must first activate the Set LED Control Mode by using the corresponding LED control intent, which enables the hub to accept LED commands.

Products with RGB LEDs supported by this feature include:

• ThunderSync3-C10

Once the hub is in Control Mode, you can select the specific hub and the port you wish to update. For each port, a drop-down list will allow you to choose the desired LED colour. The available colours you can select from include:

• Off

• Red

• Green

• Blue

• Yellow

• Magenta

• Cyan

• White

This feature provides a versatile way to customise the LED colours on your RGB-enabled hubs, helping you to visually manage and identify ports with ease.

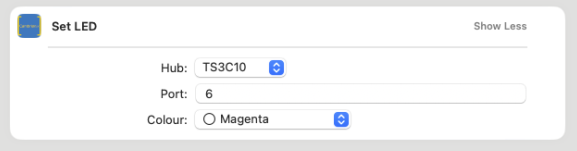

Figure 3.10
